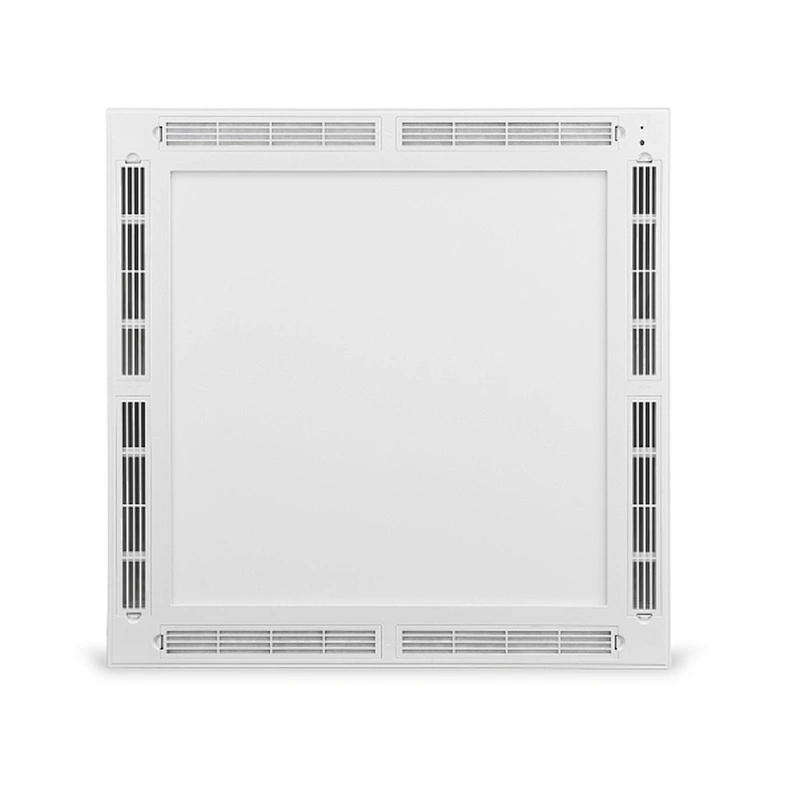

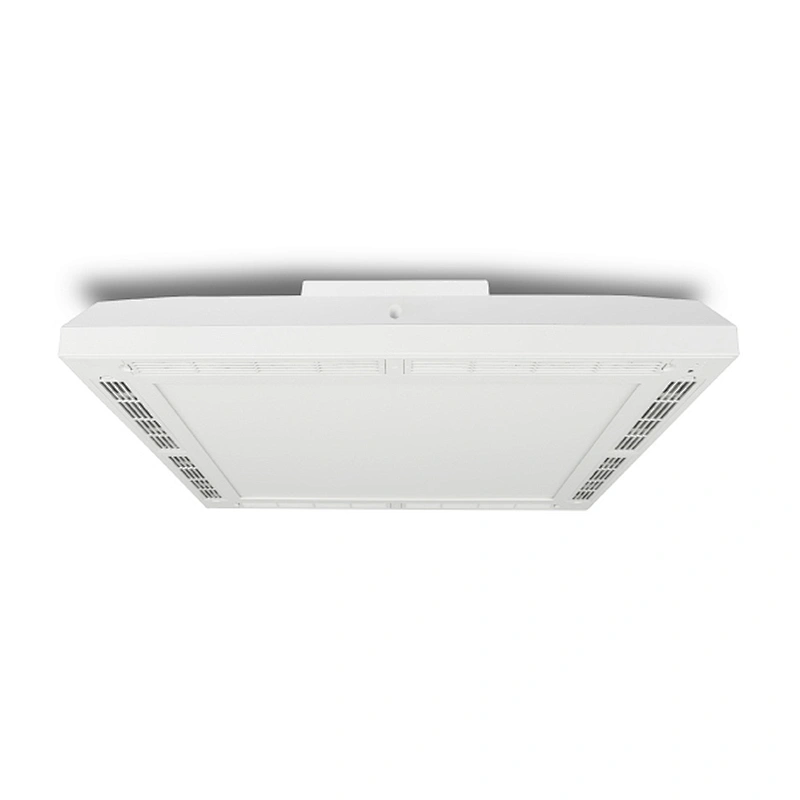

●Model No.: CL-NC-6060-G2-03
Features:

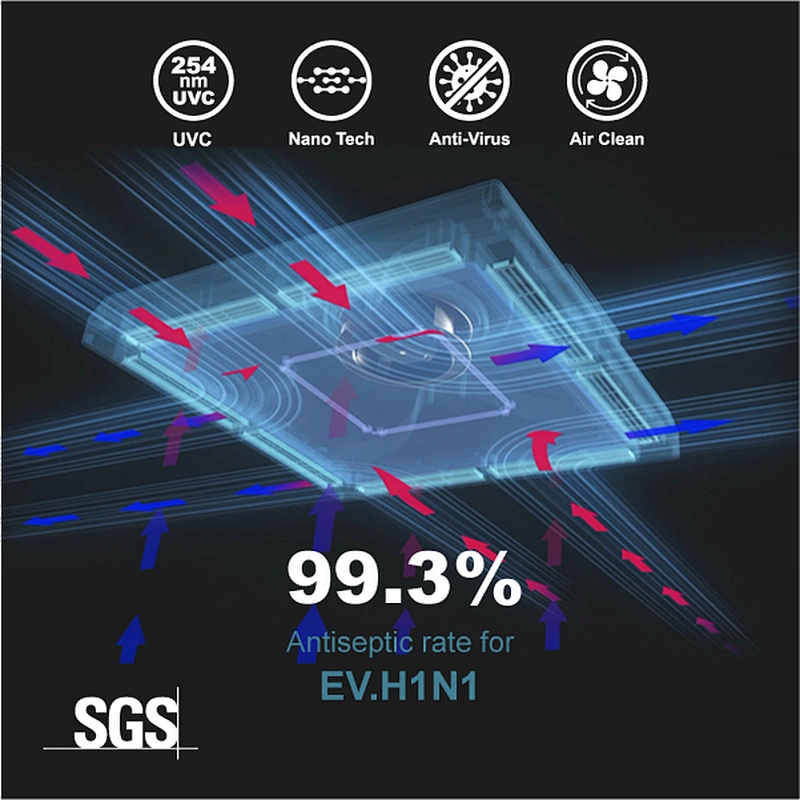

* Antivirial-- up to 99.99% disinfection rate for H1N1 ,Enterovirus (EV)
* Antibiosis ---up to 99.9% disinfection rate for E.coli,Staphylococcus aureus & TVOC and concentrations of Formaldehyde.
* Air clean--- fast , continuous treatment of air of 36 ft3/min,significant reduce of TVOC
* Operated 24/7 in occupied space , safe and no harmful materials

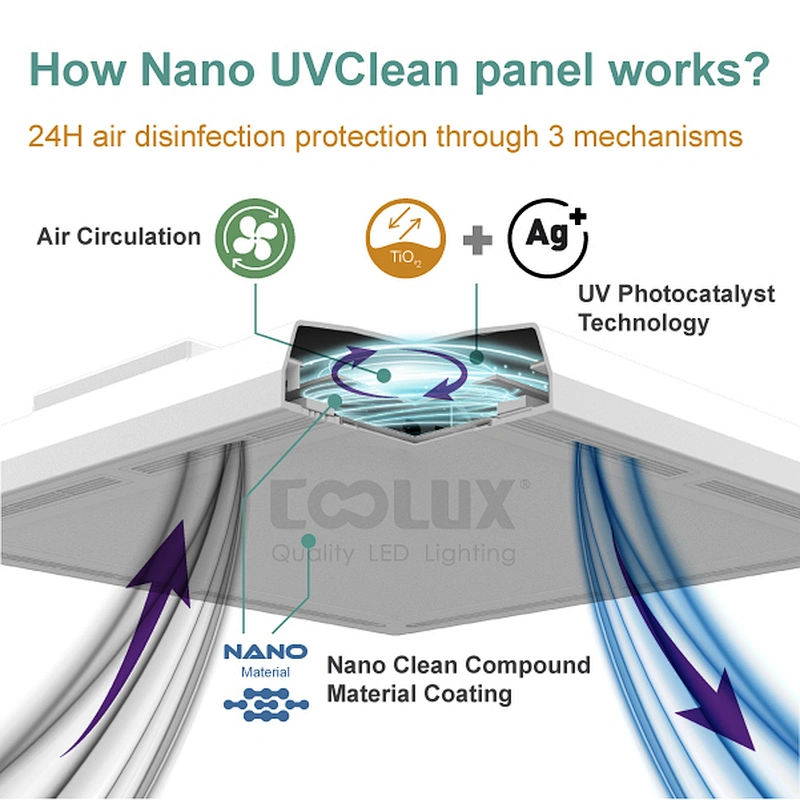

* Safe & effective technology -- Nano compounded material & UV Catalyst continous disinfection, proven by science
* Integrated air purifier & lighting system create safe air space
* 4pcs 254nm UV-C tubes for virus disinfect directly
| Electrical Parameters | ||||||||||||
| Wattage | 30W | Power | 10W | |||||||||
| Voltage | 100-277Vac 50/60Hz | Voltage | 100-277Vac 50/60Hz | |||||||||
| PF | ≥ 0.9 | UVC Tube Quantity | 4Pcs | |||||||||
| Power efficiency | 0.88 | Peak Wavelength | 254nm | |||||||||
| Flicker | NO | Radiant Flux | 1440mW (1680 uW/cm2) | |||||||||
| Optical Parameters | UVC Tube Life Expectance | 30,000 hr | ||||||||||
| Lumens | 3300 lm | Centrifugal Fan CADR | 202 ft3/min (5.7m3/min) | |||||||||
| Luminous Efficacy | 110 lm/W | Total CADR | 36 ft3/min (1m3/min) | |||||||||
| Light area | 465x465mm | Noise | <40dB | |||||||||
| Dimable | 0-10V | Fan life expectancy | 100,000 hr (at temp 40°C Humidity 5%~95%) | |||||||||
| CCT | 3CCT in 1 Selectable(3000~4000~5000K) | Filter Replacement | Filter working time 2160hrs | |||||||||

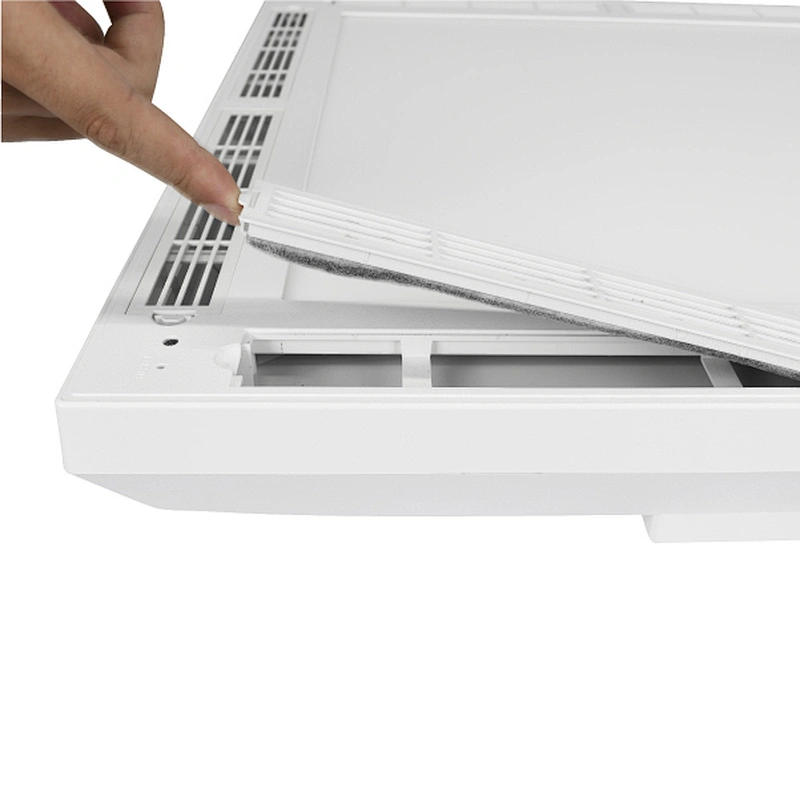

| CRI | 80Ra | When the effective time is up, the LED indicator will light up, replace the filter screen, press the RESET button, and the power supply of the circulation system will restart | ||||||||||
| SDCM | 6 step | |||||||||||
| UGR | >17 | Installation Information | ||||||||||
| Beam angle | 110° | Average ambient temperature | Average ambient : +25 ºc Operating temperature range: -20°C to +50 ºC | |||||||||
| Lamep Color RAL | white | |||||||||||
| Life Span | Installation | Recessed | ||||||||||

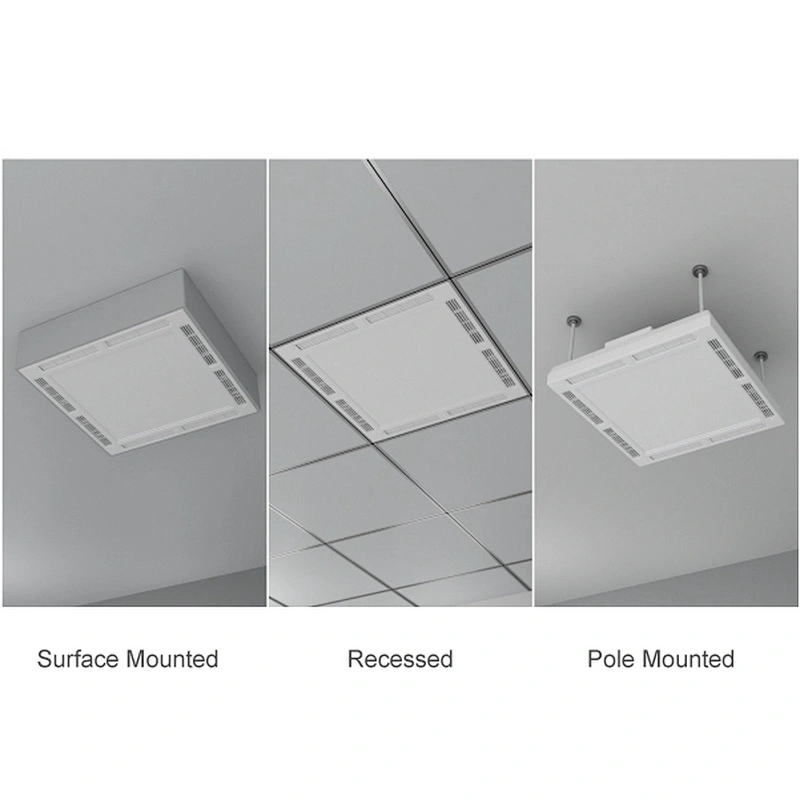

| Life span | 50,000hrs | Optional accessoreris | Ceiling Mounted | Surface Mounted | Pole Mounted | Suspension | |||||||||
| L70B50 | 50,000 hours | |||||||||||
| L80B50 | 30,000 hours | IP Rank | Total lamp IP40 | |||||||||
| L90B50 | 15,000 hours | |||||||||||
| Driver failure rate | 0.5% per 5000 hours | |||||||||||

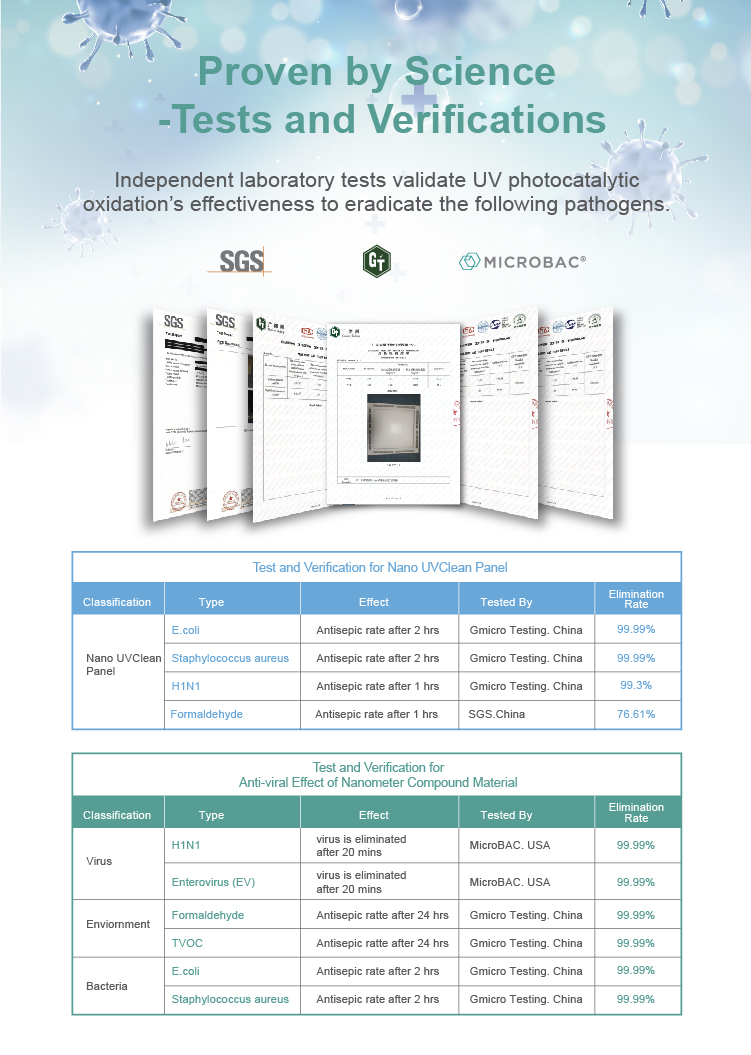

Test Report:

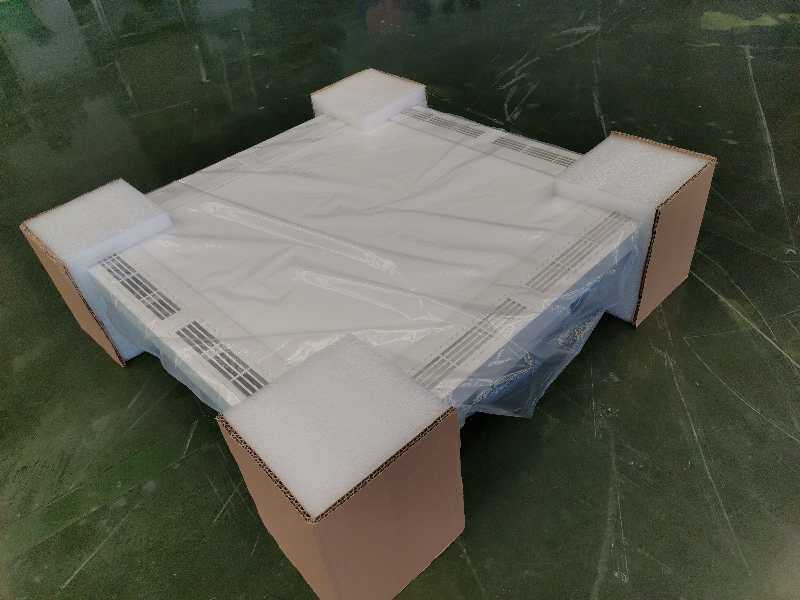

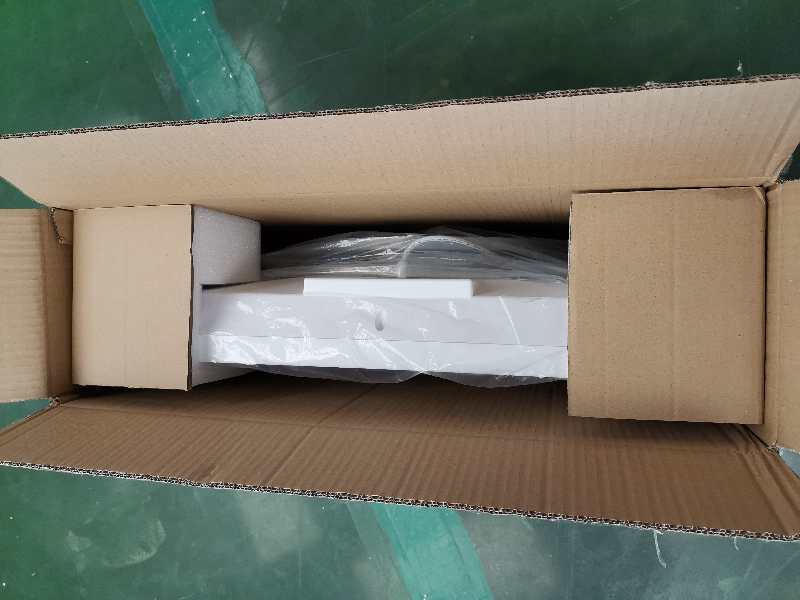

Packaging:

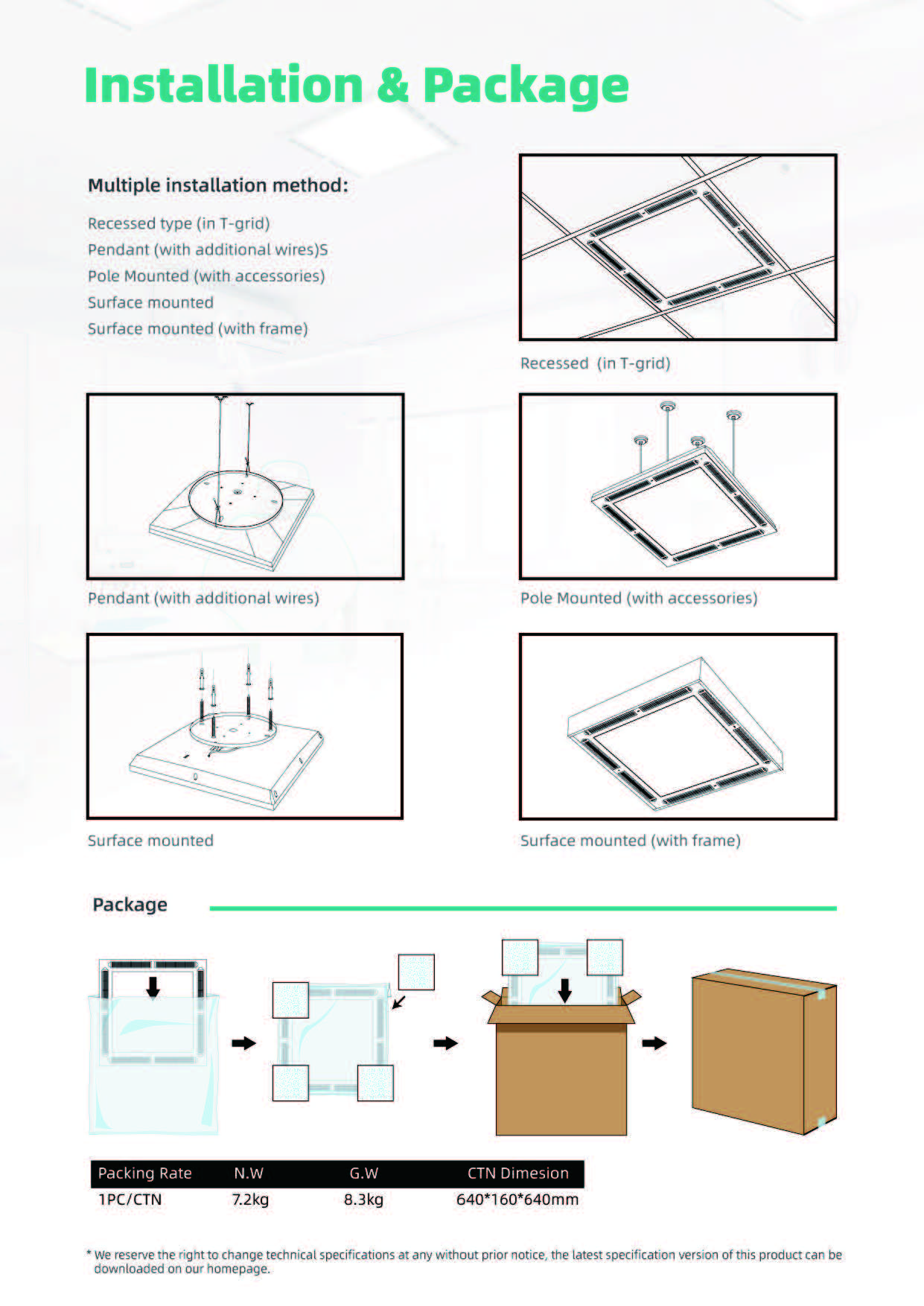

Installation:
Once germicidal anti-virus UVC light led panel Light is installed, it requires no engineering controls to operate and minumum maintenance which helps keep operation cost low.
Application:

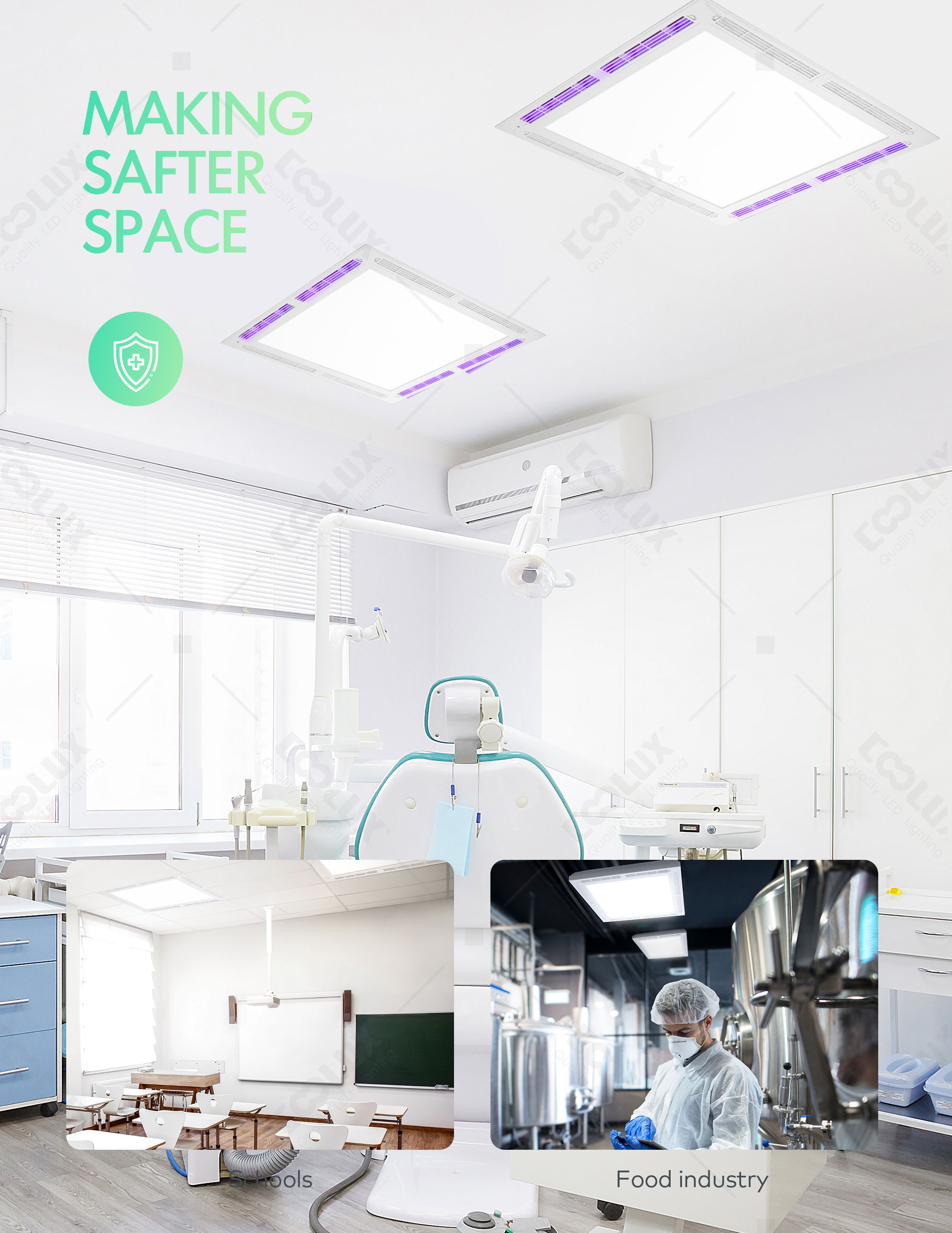

Nano UVClean panel is designed for use in hospitals, long-term care facilities, nursing homes, schools, commercial office buildings, and any other locations where cleaner air is desired.
